MDX-D600

for Nikon D600/D610

Product No. 06165

Features

Compatible with both the VF180 1.2x and VF45 1.2x viewfinders

By attaching the VF180 (#46112) or the VF45 prism viewfinders (#46111) (magnification ratio of 1.2x) to the housing, the magnification increases by 1.2x and entire field of view can be seen at the same time. Recommended for users committed to strict composition and focusing.

* You may encounter some difficulties to access the delete button function if VF45 1.2x is installed on the housing. To avoid this problem, manufacturer suggests using VF180 1.2x instead.

With the VF180 1.2x mounted

With the VF45 1.2x mounted

Two Fiber-optic cable sockets

By inserting the Fiber-Optic Cable into the housing connector, an external strobe will be optically connected to the camera's built-in flash enabling full-featured strobe photography and creative lighting expression.

Other Features

Controls most essential functions of the Nikon D600/D610 camera underwater. (Bracketing button, Preview button and Function button are not operable from the housing).
Equipped with an accessory port for HDMI output (*2)
The housing buttons are angled for ease of use and enhanced functionality.
Equipped with a tripod socket in the center of the bottom of the main body.
Comes with an optical viewfinder 0.5x as standard. Other interchangeable viewfinders are also available (optional).
The quick shoe makes the camera easy to install and remove from the housing.
A built-in leak sensor immediately alerts you to any water leakage.
Depth rating of 100m/330ft makes the housing ideal for tech diving.

Specifications

[Construction]
Body: corrosion-resistant aluminum alloy (machined)
Grip: corrosion-resistant die-cast aluminum alloy
[Depth rating] 100m / 330ft
[Dimensions (WxHxD)] 344 x 195 x 137mm / 13.8 x 7.8 x 5.5 inches
[Weight] Approx. 2,700g / 94.5oz.(Housing only)
[Set items] Housing body cap, camera quick shoe, light-shielding plate and two hex wrenches.

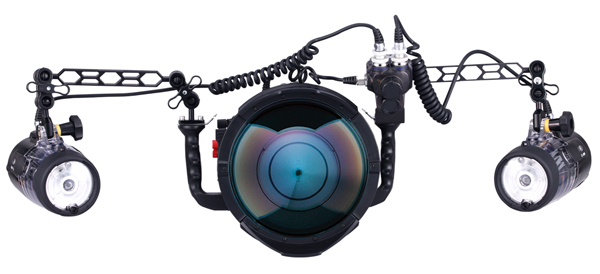

System Example

DX Macro Port Base
DX Macro Port 50II
YS-D1
L-type fiber-optic cable
SA8 Double Ball Arm S
SA8 Ball Clamp *2
SA8 Fixed Ball Base

NX Compact Dome Port
YS-02 *2
L-type fiber-optic cable *2
SA8 Strobe Head S *2
SA8 Double Ball Arm M *2
SA8 Ball Clamp *4
SA8 Fixed Ball Base *2

YS Converter/N 5pin Connector set
Fisheye Dome Port 240
YS Converter/N
YS-250PRO *2
Sync Code/N *2
SA8 Strobe Head S *2
SA8 Double Ball Arm M *2
SA8 Ball Clamp *4
SA8 Fixed Ball Base *2

Manual Download

manual_en_06165_mdx-d600.pdf

Related Information

*1 The housing is not equipped with any strobe connector when shipped from the factory. Use Fiber-Optic Cable(s) when connecting external strobe(s). Optional Sync Cord 2-pin Connector is required if you wish to use a conventional sync cable.

*2 External monitor housing such as Wahoo Monitor HD for SONY CLM-V55 can be used. Contact an official SEA&SEA dealer near you.
