 MDX housing for Nikon D700 featuring fiber-optic cable sockets

<Discontinued Product>

MDX-PRO D700

for Nikon D700
Product No. 06148

Features

Uses a lightweight and durable aluminum body that can withstand even the most severe shooting environments

The aluminum material used in MDX series housings makes it possible to manufacture a body that is both lightweight and strong. The all-new high-rigidity, high-durability, high-precision MDX series demonstrates the highest levels of performance under a variety of shooting conditions.






Two Fiber-optic cable sockets

Simply by connecting a Fiber-Optic Cable (L-type)50107 to the socket, the light of the digital camera






Manual adjustment is possible without releasing the grips

Designed for easy operation so you can comfortably reach the main command dial and sub-command dial with your fingers, while keeping your hands on the grips. Delicate operations are possible even while you are looking through the viewfinder. You can change the shutter speed or aperture value effortlessly while maintaining your framing.


*The Ergo Grip22109 (option) is mounted.




Other Features
  • Compatible with the VF180 1.2x viewfinders.
    By attaching the VF180 prism viewfinder (magnification ratio of 1.2x) to a SEA&SEA housing, the magnification increases by 1.2x and entire field of view can be seen at the same time. Recommended for users committed to strict composition and focusing.
  • The YS converter connector is standard equipment. The included 5-pin wired connector accepts the optional YS Converter/N. The converter woks with the YS-Series strobes to provide automatic TTL flash adjustment.
  • Every detail of the housing is precision machined from a solid aluminum block to achieve a high-quality texture and design. All edges have been polished carefully for safety.
  • The housing is protected by a highly corrosion resistant, anodized (dark blue) coating. The coating protects the housing from environmental corrosion and abrasions.
  • Comes standard with two kinds of type-N connectors: one 2-pin wired connector (for manual) and one 5-pin wired connector (for dedicated TTL).
  • Equipped with a Optical Viewfinder 0.66x standard. Interchangeable 0.5x/0.8x viewfinders (optional) are also available.
  • The quick shoe makes the camera easy to install and remove from the housing.
  • A port lock mechanism secures the port from accidental loosening.
  • A built-in leak sensor immediately alerts you to any water leakage.
  • Strong and durable build, with a depth rating of up to 60 m / 200 ft.


Specifications


  • [Construction] corrosion-resistant aluminum alloy (machined)
  • [Depth rating] 60m / 200ft
  • [Dimensions (WxHxD)] 226x201x142mm / 9x8x5.7inch
  • [Weight] Approx. 2,230g / 78.1oz (Housing only)
  • [Set items] Housing body cap, camera quick shoe, CR2032 lithium battery, attachment tool

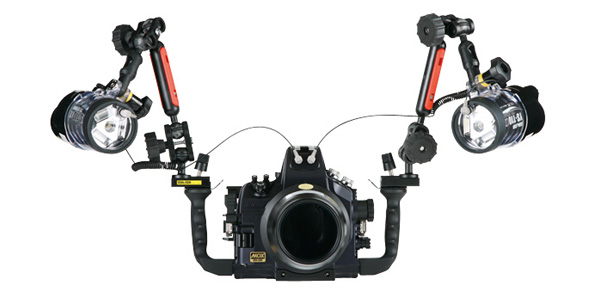

System Example


  • NX Compact Macro Port Base
  • Compact Macro Port M (67)
  • YS-250PRO
  • L-type fiber-optic cable
  • Grip-Stay L
  • Sea Arm VII Basic Set




  • DX Macro Port Base
  • DX Macro Port 50
  • YS-110α *2
  • L-type fiber-optic cable *2
  • Sea Arm VII Basic Set *2




  • YS Converter/N
  • NX Compact Dome Port
  • YS-110α *2
  • 5-pin Sync Cord/N *2
  • Sea Arm VII Basic Set *2


Manual Download



Related Information

Replacement of the strobe sync connector (5-pin wired → 2-pin wired)
(Product No. 89056)
Customizing the housing offers additional functions. You can replace the 5-pin wired YS converter connector on the top of the housing with a 2-pin wired strobe connector for an additional cost. This modification provides two 2-pin wired strobe connectors so you can connect two SEA&SEA YS-Series strobes.
*This modification does not support automatic TTL flash adjustment.
*It requires the 5-pin Sync Cord/N.
