High quality polycarbonate housing for the Canon EOS 650D/700D/EOS Rebel T4i/T5i.

<Discontinued Product>

RDX-650D

for Canon EOS Kiss X7i/X6i
Product No. 06164

Features

Easy mounting

Camera Quick Shoe for easy mounting and removal of the camera. Mounting the camera becomes a breeze. You need only to slide the camera quick shoe into the slot, up to the designated position. There is almost no need for complicated position and gear alignments so even beginners can easily mount a camera.






Two Fiber-optic cable sockets

By inserting the Fiber-optic Cable into the housing connector, an external strobe will be optically connected to the camera’s built-in flash enabling full-featured strobe photography and creative lighting expression.





Other Features
  • Compatible with the VF180 1.2x viewfinders.
    By attaching the VF180 prism viewfinder (magnification ratio of 1.2x) to a SEA&SEA housing, the magnification increases by 1.2x and entire field of view can be seen at the same time. Recommended for users committed to strict composition and focusing.
  • Customer-replaceable strobe connector (Optional Sync Cord 2-pin Connector) is available. Remove the accessory connecter cap and install the Optional Sync Cord / N. Then the 5-pin Sync Cord/N or the 5-pin Dual Sync Cord/N will be useable.
  • Features a Optical Viewfinder 0.5x that makes it easy to see the whole field of view. An optional exchangeable viewfinder can be selected as well.
  • Various ports including NX ports can be mounted with the RDX Port Base L or the RDX Port Base S in order to accommodate many kinds of lenses.
  • Easily operated shutter lever, excellent for quick snapshots. The shutter lever can be operated in two ways – pushing from the top or pulling from the front – and offers a smooth halfway press for adjusting the autofocus so you need not worry about any missed chances.
  • Large buckle structure (with lock function). Makes it easier to open and close the back cover than existing (metal) locking latches.
  • By attaching an SA8, a SEA ARM 7 Compact or a similar arm set to the tripod socket at the bottom of the housing, up to two external strobes can be mounted.
  • When using the optional Grip-Stay L II, you can hold the camera firmly with both hands just as you can with conventional housings.
  • Strong and durable build, with a depth rating of up to 60m / 200ft.


Specifications


  • [Construction] Polycarbonate
  • [Depth rating] 60m / 200ft
  • [Dimensions (WxHxD)] 200x190x144mm / 8x7.6x5.8 inches
  • [Weight] Approx. 1,780g / 62.3oz (Housing only)
  • [Set Items] Housing body cap, camera quick shoe, hand strap

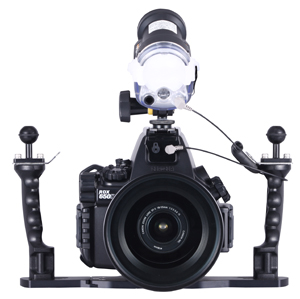

System Example

*When you shoot close-up photos, part of the image may not be illuminated due to the shadow of the port.


  • RDX Standard Port
  • YS-01
  • Fiber-Optic Cable (L-type)
  • Grip-Stay L II
  • SA8 Strobe Head M
  • SA8 Ball Clamp
  • SA8 Ball Base For Accessory shoe




  • RDX Standard Port
  • YS-D1
  • Fiber-Optic Cable (L-type)
  • Grip-Stay L II
  • SA8 Double Ball Arm M
  • SA8 Ball Clamp *2


Manual Download



Related Information

*When the RDX-650D is shipped from factory, the housing is sealed with connector cap.
*The YS converter/C (50118) is not compatible with this product.
