High light intensity is powerful for video recording!

LX-4000SW FS

Product No. 09130 (Black)/ 09131 (White)

The originally developed new COB realizes the ideal ‘center light distribution’ of a single light source for both wide and spot lighting. Eliminating multi-shadows brings out the subject sharply. The LX-4000SW FS has the greatest light intensity of the series is efficient, especially for video recording.



Features

Center light distribution for both wide and spot

The light source is COB (LED), which has an established reputation for uniform light distribution. The original design customizes the COB into a donut shape. The wide light source is placed on the donut, and the spot light LEDs are placed in the center of the emitting surface (the donut hole). Whether wide or spot lighting, the optical axis is on the center of the light-emitting surface, ensuring optimum lighting at all times.



What is the new 'COB'?
’COB’ is a type of LED. It is an abbreviation for ‘Chip on board’, and as the name suggests, multiple LED chips are placed directly on the board. Since multiple LED chips are arranged in a concentrated manner, high luminance is achieved. A large surface can also be illuminated evenly since the light is emitted from a surface. SEA&SEA is the first in Japan to lay out ‘COB’ in a donut shape. Even with wide light, shadows are less likely to form in the center, resulting in uniform light.

Eliminate 'multi-shadowing'

COB eliminates ‘multi-shadows’ in both wide and spot lighting. The natural shadows bring out the subject clearly and sharply, making it an ideal light for imaging.



What is multi-shadow?
Shadows unique to LED lighting. When an object is illuminated by LED lighting composed of numerous LED light-emitting parts, unnatural multiple shadows are produced, different from those produced by sunlight. Multiple shadows can obscure the outline of an object and reduce its visibility. Single light source COB does not produce multiple shadows.


Various light intensity adjustment functions

Light adjustment : 4-step light adjustment (25% increments)
For 4-step light adjustment, press the power/light adjustment button when the light is on. It circulates between 25%, 50%, 75% and 100% per press to change the light intensity according to the situation.


Light adjustment : 100-step light adjustment (1% increments)
100-step light adjustment from 0 to 100% is performed with the light intensity adjustment buttons on the left and right. Subtle adjustment is possible in 1% increments. The digital % display allows for fine adjustment and a sense of security.

Memory function

It is also equipped with a ‘memory function’ that turns back on at the same light intensity as when the light was turned off. It is is especially useful when recording video, as it turns on at the same light intensity as when the light was turned off.


Useful flash sensor function for still image shooting

It is equipped with a ‘flash sensor function’ that senses the strobe light, automatically turns off the light, and turns it back on one second later. As the light turns off reacting to the strobe light, there is no need to worry about light being captured. A spot light is utilized as a focus light. The wide light can be used to look for subjects or check the environment without worrying about uneven exposure or color blurring.




Easy-to-handle compact body

A spot light source is laid out in the center of the donut-shaped wide light source, eliminating waste in the arrangement of light-emitting surfaces and enabling a minimized light head. With a compact size that fits in the palm of the hand and an underwater weight of only 163g, the body design fits comfortably in the hand, making it easy to use and maneuver.

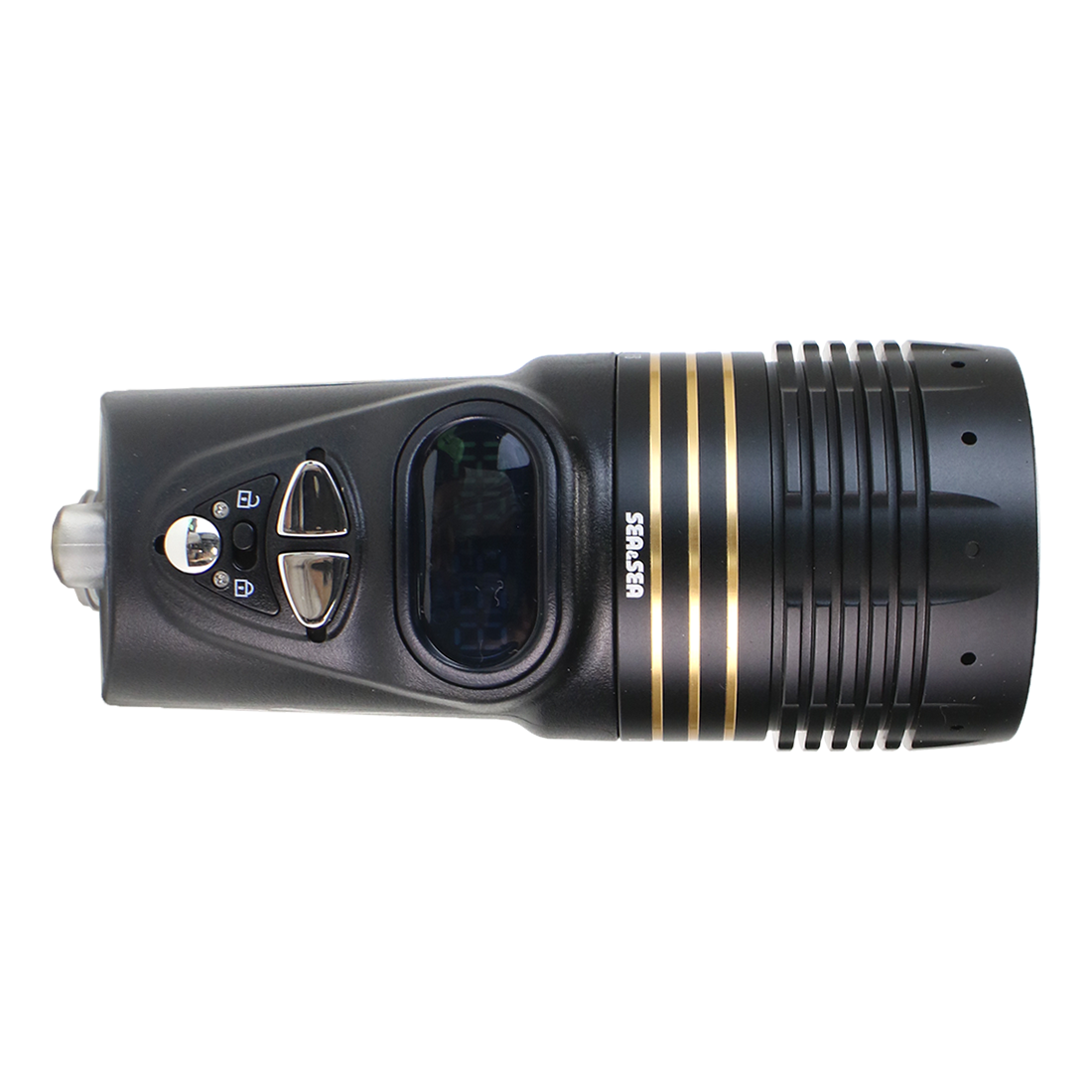

Easy-to-read color LCD panel display

A variety of functions are displayed on a highly visible color LCD panel. The ‘light intensity’ and ‘remaining lighting time’, most important underwater, are largely displayed on the same easy-to-read screen. Light intensity can be adjusted by operating buttons while viewing the panel display.

Light intensity: Light intensity during lighting is displayed in 1% increments.
Remaining lighting time: Displays how many more minutes lighting is available in real-time.

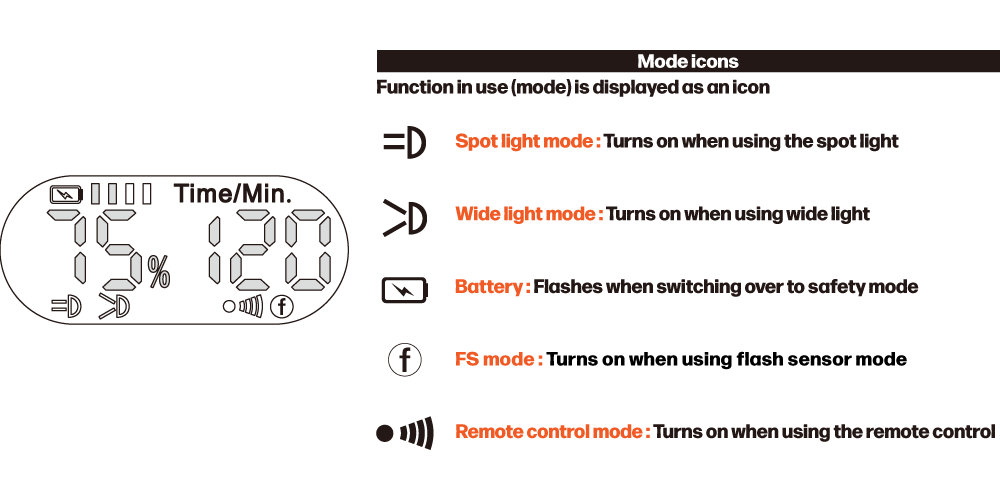

Mode icons for function display

The function in use (mode) is indicated by a colored icon.

Spot: Turns on when using the spot light
Wide: Turns on when using wide light.
Battery: Flashes when switching over to safety mode.
FS mode: Turns on when using flash sensor mode
Remote control mode: Turns on when using the remote control



Four trouble-shooting functions

Safety Mode:
Battery indicator flashes. When the remaining battery becomes low, it automatically drops the light intensity to 20%. The display shows ‘10min’ and starts counting down.

High Temperature Protection Mode:
The display shows ‘HOT’ when the light head reaches 55°C (131°F) or higher during use, it automatically switches to protection mode and reduces the light intensity to 20% of its maximum.

Blinking Signal Mode:
The display shows ‘BLI’. It emits with blinking signal mode.

SOS Mode:
The display shows ‘SOS’. The light repeats [3 short blinks] ⇒ [3 long blinks] ⇒ [3 short blinks] ⇒ [OFF].




Battery charging is 2-way

Despite its compact body, the Li-ion battery has a large capacity of 3400 mAh and can be recharged in two ways.

1. Direct charging:
The battery can be charged directly by connecting the included dedicated rear charge plug to the charging connector terminal on the back of the body. As it is unnecessary to remove the battery from the body, there is no risk of submersion in water. No time and energy needed.


2 Removable charging:
The battery can be removed from the body and charged directly with the charger. The battery is compact, so there is no need to worry about running out of power if you have a spare battery for replacement.
*It is also convenient that the battery can be removed for aircraft carry-on.




Specifications

  • [Model No.] LX-4000SW FS BLK (Black) / LX-4000SW FS WHT (White)
  • [Maximum Luminous power] 3860lm (wide) / 1500lm (Spot)
  • [Beam angle (underwater)] 100° (wide) / 30° (spot)
  • [Color temperature] 5500K (wide) / 6500K (spot)
  • [Color rendering index] RA90 (wide) / RA70 (spot)
  • [Continuous lighting time (maximum light intensity)] 30 minutes (wide) / 90 minutes (spot)
  • [ Light adjustment] 4 steps (25% increments) / 100 steps (1% increments)
  • [Flash sensor] Equipped
  • [Remote control] Compatible (Option, TBC )
  • [User Interface] Color LCD Panel
  • [Power] Rechargeable Li-ion battery
  • [Battery capacity] 3400mAh / 7.4V
  • [Charging time] 2.5 hours
  • [Body Materials] Corrosion-resistant aluminum alloy / Reinforced resin
  • [Charging method] Light body loading method / Battery direct method
  • [Depth rating] 100m
  • [Size] Φ58 x 139 mm
  • [Weight (Battery included)] 430g (in air) / 163g (underwater)
  • [Accessory mount] M52
  • [Color] BLACK / WHITE
  • [Accessories] Battery Pack SB-L1, Charger, Gun Grip, Ball Base, YS Base, GoPRO Base, Loc-Line Base, Charge Cap, Charge Plug, Wrist Lanyard, Fixing Screw, Allen Key, O-ring Grease, O-ring Remover



Download




Related Items

Card image cap

BATTERY PACK SB-L1
Product No. 09136
Card image cap

LX CHARGER
Product No. 09137
Card image cap

LX CHARGE PLUG
Product No. 09138 (Black) / 09139 (White)
Card image cap

LX CONNECTOR CAP
Product No. 09140 (Black) / 09141 (White)
Card image cap

LX GUN GRIP
Product No. 09142 (Black) / 09143 (White)
Card image cap

LX YS BASE
Product No. 09144 (Black) / 09145 (White)
Card image cap

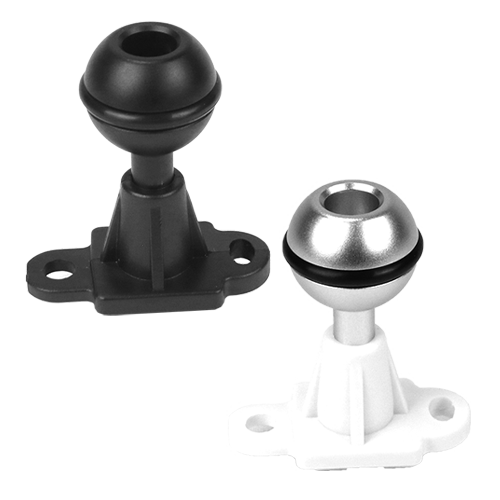

LX BALL BASE
Product No. 09146 (Black) / 09147 (White)
Card image cap

LX GoPro BASE
Product No. 09148 (Black) / 09149 (White)
Card image cap

LX Loc-Line BASE
Product No. 09150 (Black) / 09151 (White)
Card image cap

LX WRIST LANYARD
Product No. 09152
Card image cap

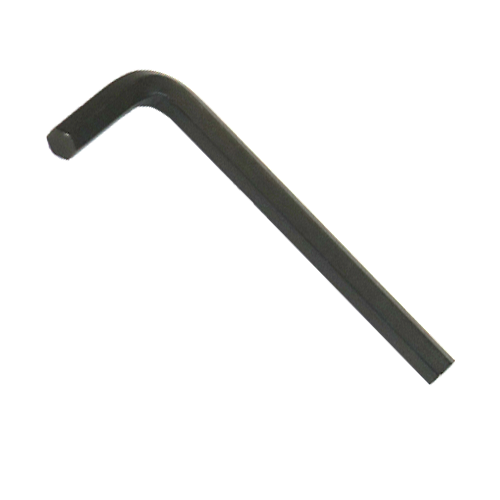

HEXIA WRENCH
