State-of-art housing for the full-frame mirrorless Nikon Z7II/Z6II/Z7/Z6 camera.
Compact, compatible with Optical YS Converter and ergonomically designed.

MDX-Z7II

for Nikon Z7II/Z6II/Z7/Z6

Product No. 06208

Features

Ports and gears for the MDX series SLR housings can be used.

The MDX-Z7Ⅱ/Z6Ⅱ is compatible with the system chart for the MDX series SLR housings. You can utilize F-mount lenses with the mount adapter FTZ and ports/gears for the MDX series housings.

Compatible with Optical YS Converter/N1. TTL strobe photography possible.

An optional Optical YS Converter which converts the camera’s hot-shoe TTL signal into an LED light signal is compatible with the housing. Manual strobe photography is also possible.

Designed for both F mount lenses with the mount adapter FTZ and Z mount lenses.

The Focus/Zoom dial has two gears, one for F-mount lenses with the mount adapter FTZ and the other for Z mount lenses. The MDX-Z7 has been designed to take into consideration various Z mount lenses which will soon be available.

Leak Alarm Unit as standard equipment

The Leak Alarm Unit, which was previously available as an option, is now included as standard equipment.
It is effective not only for early detection of underwater flooding accidents, but also for protection of equipment by checking its waterproof performance before entry.
CR2032 lithium battery included.

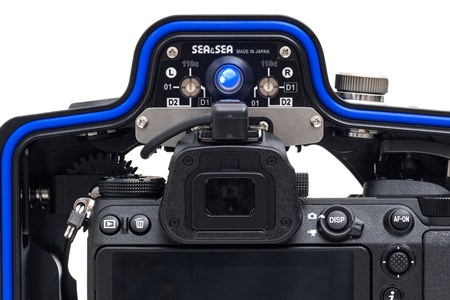

The camera’s upper control panel can be seen.

A window for the camera’s upper control panel is also incorporated. As brightness of the camera’s upper control panel has increased, the visibility is now greatly improved.

M16 Connector

M16 compatible accessories for an external monitor.

Other Features

The Port Lock prevents the port from turning or loosening and the Port Lock lever is specifically located to avoid being unlocked accidentally.
The housing is equipped with a lens-lock release button which makes it possible to change lenses easily, without opening the housing.
Pulling out the Focus/Zoom Dial gives sufficient room inside the housing to easily accommodate larger diameter lenses.
The camera’s diopter adjustment dial can be operated from outside the housing. This feature is useful when two or more people with different eyesight use the housing.
All controls have luminescence stickers which glow in dark environment.
Equipped with the Optical Viewfinder 0.5x as standard. Other optional viewfinders such as Optical Viewfinder 0.66x,and 0.8x can be used.
※Some vignetting occurs.When the VF45 and VF180 1.2x is mounted on housing, the corners of the camera's viewfinder cannot be viewed due to vignetting.
Sync Cord 2-pin Connector enables use of conventional hardwired Sync cable (Manual mode only).
Equipped with two sacrificial zinc diodes (one on the front case and the other on the rear) to prevent electrolysis damage.
Equipped with under guard to protect from scrach.
Compatible with Z7 / Z6 cameras by using the included parts

Specifications

[Construction]
Body: corrosion-resistant aluminum alloy (machined)
Grip: corrosion-resistant die-cast aluminum alloy
[Depth rating] 100m / 330ft
[Dimensions (WxHxD)] 339 x 169 x 158 mm / 13.3 x 6.7 x 6.2 inches
[Weight] Approx. 2,700g / 95oz (Housing only)
System Chart

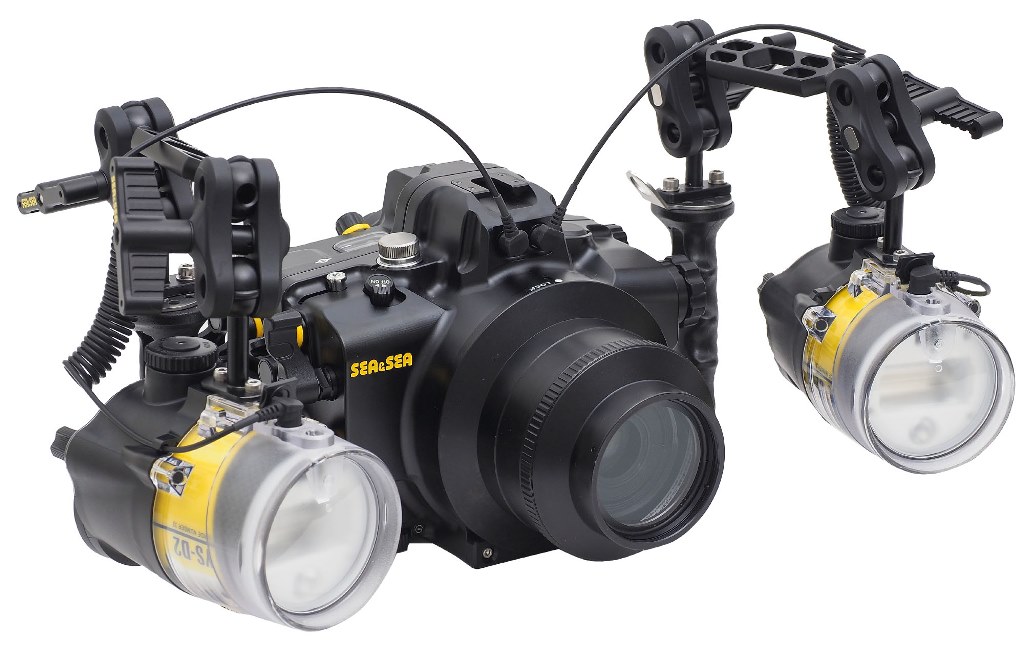

System Example
