M67 Wide-angle conversion Lends / WCL06
Product No. 52150

Replaceable with M52 screw mount and bayonet mount SS

Specifications
[Underwater angle of view] 94 degrees (150 degrees on land)
[Magnification] 0.6x
[Depth rating] 60m/200ft
[Weight] 400g / 14oz
[Dimensions (DIA x D)] 97 x 50.5mm / 3.8 x 2.0 inches
[Construction] corrosion-resistant aluminum alloy, anodized body (black).


M52 Wide-Angle conversion Lens / WCL06
Product No. 52151

 Replaceable with M67 screw mount and bayonet mount SS.

Specifications
[Underwater angle of view] 94 degrees (150 degrees on land)
[Magnification] 0.6x
[Depth rating] 60m/200ft
[Weight] 400g / 14oz
[Dimensions (DIA x D)] 97 x 50.5mm / 3.8 x 2.0 inches
[Construction] corrosion-resistant aluminum alloy, anodized body (black).


SSbayonet Wide-Angle conversion Lens / WCL06
Product No. 52152

As bayonet mount is employed, the lens can be attached and detached with ease.
[Compatible housing]DX-6G

Specifications
[Underwater angle of view] 94 degrees (150 degrees on land)
[Magnification] 0.6x
[Depth rating] 60m/200ft
[Weight] 400g / 14oz
[Dimensions (DIA x D)] 97 x 50.5mm / 3.8 x 2.0 inches
[Construction] corrosion-resistant aluminum alloy, anodized body (black).

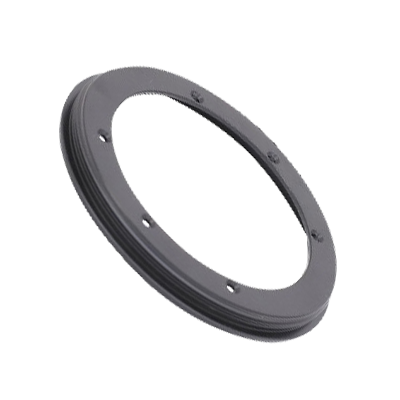

M67 Screw Mount
Product No. 52146

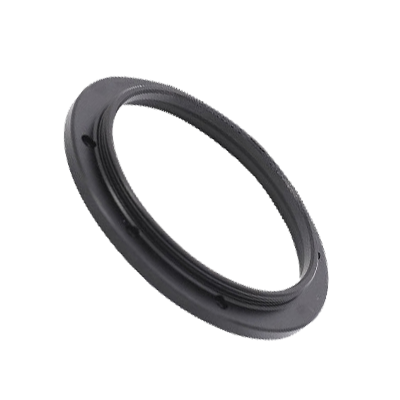

M52 Screw Mount
Product No. 52147

Bayonet Mount SS
Product No. 52148

Lens Caddy for DX-1G
Product No. 60104

The caddy enables the wide-angle conversion lens for the DX-1G to be attached to either the Sea Arm Light or Sea Arm VII Set22104.

Manual Download

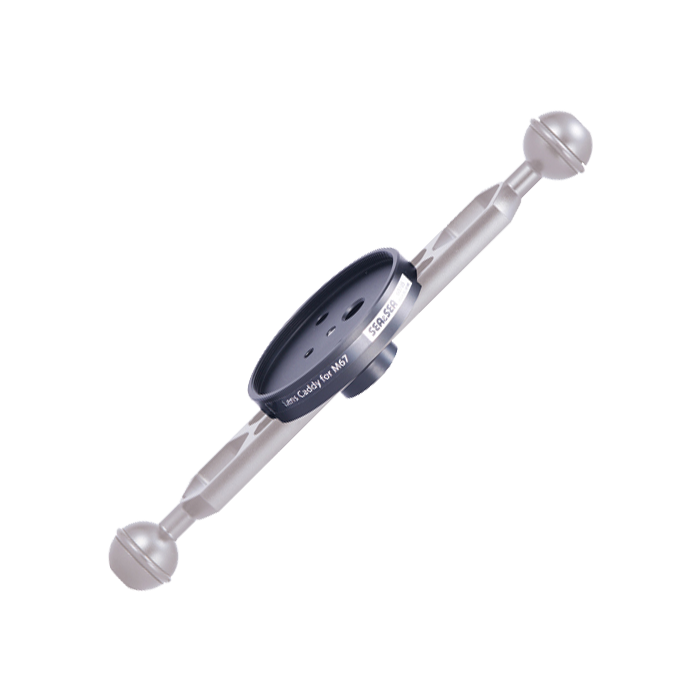

Lens Caddy for M67 Wide-angle Conversion Lens
Product No. 60105

The caddy is made of aluminum alloy and enables accessory lenses with M67 screw mounts to be attached to a SA8 Double Ball Arm (S/M/L) and stored when not in use.
The caddy is securely bolted in place ensuring there is no movement or slip. Either the M67 Wide-angle Conversion Lens 0.6x or the Close-Up Lens 125 (with M67-M62 Step Down Ring) can be mounted.
Two accessory lenses with M67 mounts can be attached to a SA8 Double Ball Arm if you have two Lens Caddies fitted (one on each side).

Specifications
[Dimensions]72 x 25.1mm/2.8 x 1.0inches(DIA x D when attached to a SA8 Double Ball Arm)
[Weight]91g/3.2oz
[Construction]Corrosion-resistant aluminum alloy, POM resin and stainless steel.

SA8 Double Ball Arm M with two M67 Lens Caddies attached.

SA8 Double Ball Arm M with one M67 Lens Caddy and M67 Wide-angle Conversion Lens mounted.

SA8 Double Ball Arm M with two M67 Lens Caddies, M67 Wide-angle Conversion Lens and Close-up Lens 125 (with M67-M62 Step Down Ring) mounted.

Manual Download



Wide-Angle Conversion Lens for DX-1G
Product No. 52116

When the wide-angle conversion lens is mounted, the angle of view increases from 24mm to about 16mm (35mm film equivalent). (The lens can be used on land as well as underwater.)

Click here for sample 1
Click here for sample 2

Specifications
[Lens] 3 elements in 3 groups
[Underwater angle of view] 85° (106.5° on land)
[Magnification] 0.65x
[Depth rating] 60m / 200ft
[Weight] Approx. 406g / 14.2oz (underwater: Approx. 230g / 8.1oz)
[Dimensions (DIAxD)] 97x48.5mm / 3.9x1.9 inch

*The lens can be used on land, but slight vignetting (dimming) may occur in the four corners of the image. Slightly zoom in to telephoto to eliminate vignetting.
*A shadow may appear in the image if the built-in flash is used when the wide-angle conversion lens is mounted. It is highly recommended that you use an external strobe.

Manual Download
