◆ SEA&SEA — Housing
Product No. 06232
Depth100 m
SystemDX Port
SeriesMDX Universal
◆ Housing / MDX Z
for Nikon Z5II

MDX-Z5II U Universal Underwater Housing

Color
BLACK

Universal compatibility with Nikon Z.
The second release in the MDX-U series.

01 Depth ratingFans & Technical 100 m
02 CompatibilityCameras Nikon Z series (Z5II)
03 Body materialRuggedness Aluminum Alloy
04 Port systemMacro & Dome DX Mount


Features
01.

Newly designed optical fiber cable cover.

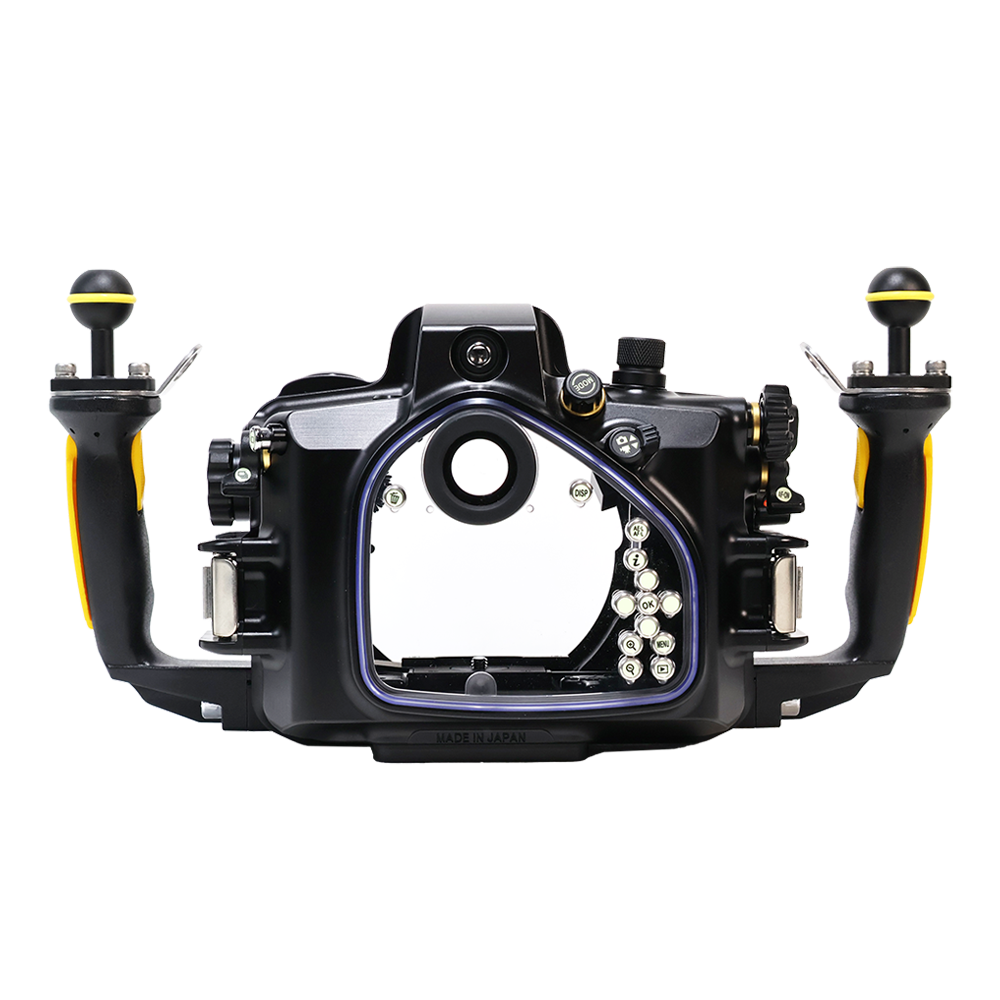

The back panel is designed to be large.

The back acrylic panel is more than twice as large as before to improve visibility of the monitor and reduce the underwater weight.
Furthermore, it is a sustainable design that can be used with new cameras in the future with minimal parts replacement.


02.

Leak Alarm Unit as standard equipment

Reducing the Risk of Flooding

The Leak Alarm Unit, which was previously available as an option, is now included as standard equipment.
It is effective not only for early detection of underwater flooding accidents, but also for protection of equipment by checking its waterproof performance before entry.CR2032 lithium battery included.

Product No. 46135
03.

The controls can be operated while holding the grip.

Comprehensive Standard Features

The main electronic dial and sub electronic dial 2, which are frequently used in underwater photography, can be quickly operated.
Video shooting can also be operated while holding the grip. You can shoot videos underwater while holding the grip, so you won't miss the shutter opportunity.

04.

Strobe Sync System

Four Connection Methods
Method 1

Optical HSS/TTL Connection

Product No. 11048 NEW
UWT HSS TTLConverter Nikon SS

When used with a compatible flash, HSS/TTL shooting is possible. In HSS mode, shutter speeds up to 1/8000 are available.

Method 2

Optical TTL Connection

A high-performance converter that converts the camera's flash signal to LED light and synchronizes with YS flashes. It also supports TTL automatic exposure control.

Method 3

Optical Manual Connection

Product No. 50144
Manual Flash Trigger/CN

When TTL shooting isn't necessary, you can trigger the YS flash manually by connecting it via a fiber-optic cable.

Method 4

Electrical Connections

Product No. 50147
Strobe Connector/N

YS strobes equipped with a connector can be connected electrically using a sync cable.



Other Features
  • The Port Lock prevents the port from turning or loosening and the Port Lock lever is specifically located to avoid being unlocked accidentally.
    The housing is equipped with a lens-lock release button which makes it possible to change lenses easily, without opening the housing.
  • Pulling out the Focus/Zoom Dial gives sufficient room inside the housing to easily accommodate larger diameter lenses.
  • All controls have luminescence stickers which glow in dark environment.
  • Equipped with the Optical Viewfinder 0.5x as standard. Other optional viewfinders such as the VF180 1.2x can be used.

    *When the VF45 1.2x is attached, slight vignetting occurs at the corners of the viewfinder.
    *When the VF180 1.2x is attached, slight vignetting occurs at the corners and top of the viewfinder.
  • Equipped with two sacrificial zinc diodes (one on the front case and the other on the rear) to prevent electrolysis damage.

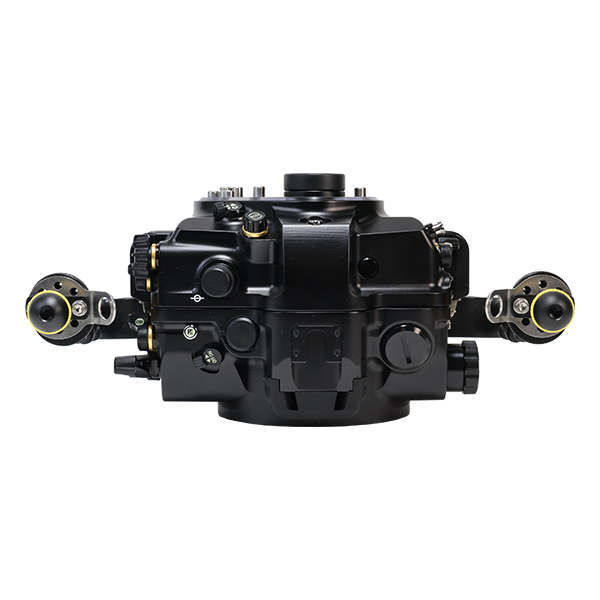

  • Tripod screw mount is located on the centre underside of the housing.
  • Equipped with under guard to protect from scrach.
Specifications
Dimensions
343 x 169 x 160 mm / 13.5 x 6.7 x 6.3 inches (W x H x D)

Weight
Approx. 2,890g / 101.9oz (Including Grips)

Depth rating
100m / 330ft

Construction
Corrosion-resistant aluminum alloy (machined, anodized finish)
MANUAL DOWNLOAD

You can find detailed instructions on how to operate and maintain the product.

MANUAL
SYSTEM CHART

Check the port system configuration.

SYSTEM CHART

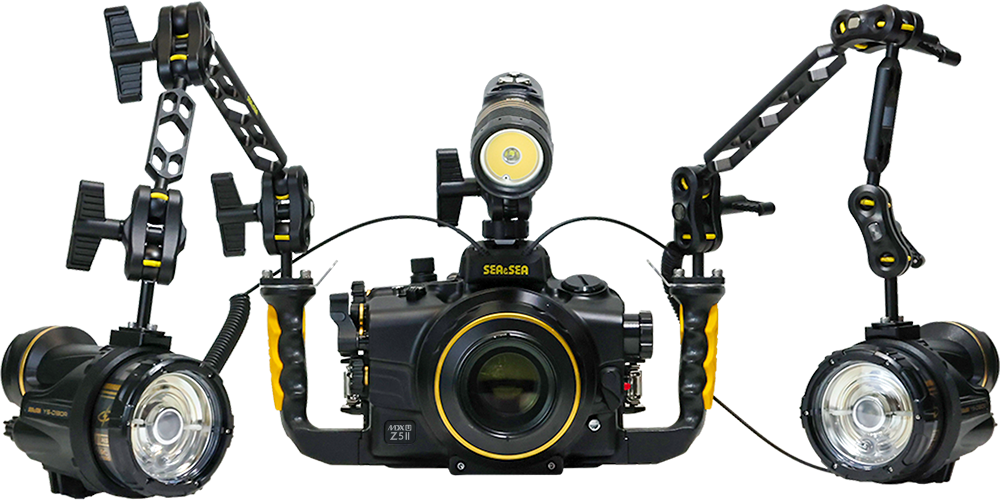

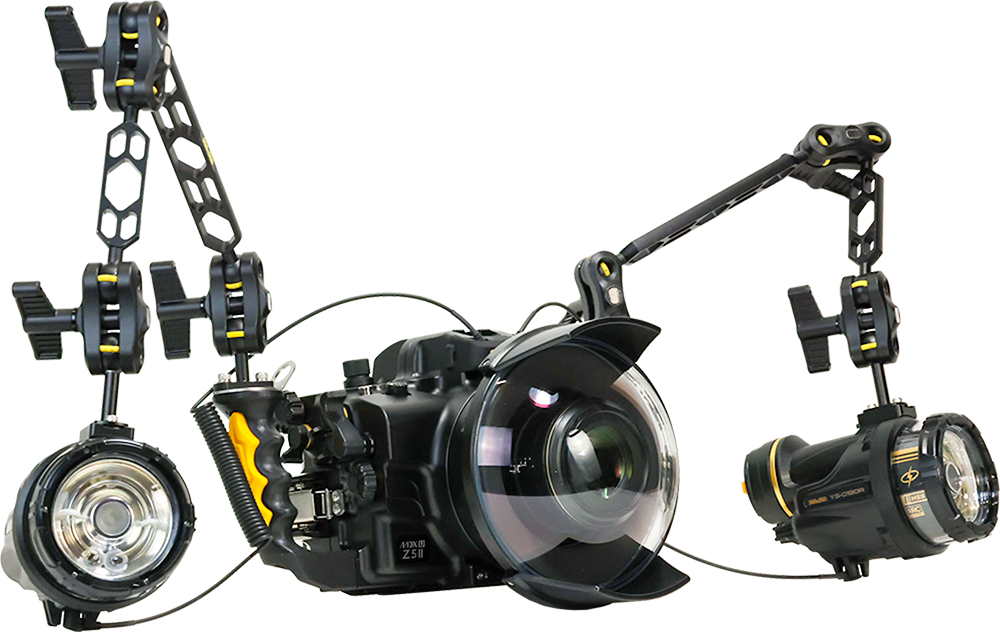

System Example



  • MDX-Z5II U Housing
  • YS-D130R *2
  • Fiber-Optic Cable II M/2 Connectors *2
  • SA8 Fixed Ball Base *2 / SA8 Double Ball Arm M *2 / SA8 Double Ball Arm S *2 / SA8 Ball Clamp II *6
  • Optical YS Converter/CR for MDX housing




  • MDX-Z5II U Housing
  • YS-D130R *2
  • Fiber-Optic Cable II M/2 Connectors *2
  • SA8 Fixed Ball Base *2 / SA8 Double Ball Arm M *2 / SA8 Double Ball Arm S *2 / SA8 Ball Clamp II *6
  • Optical YS Converter/CR for MDX housing
  • LX-4000SW FS
  • SA8 Ball Base for Accessory Shoe II / SA8 Ball Clamp II




Related Items

Spare O-ring
Product No. 62121
VF Adapter NA
Product No. 46145
Housing Lanyard IV
Product No. 46137
